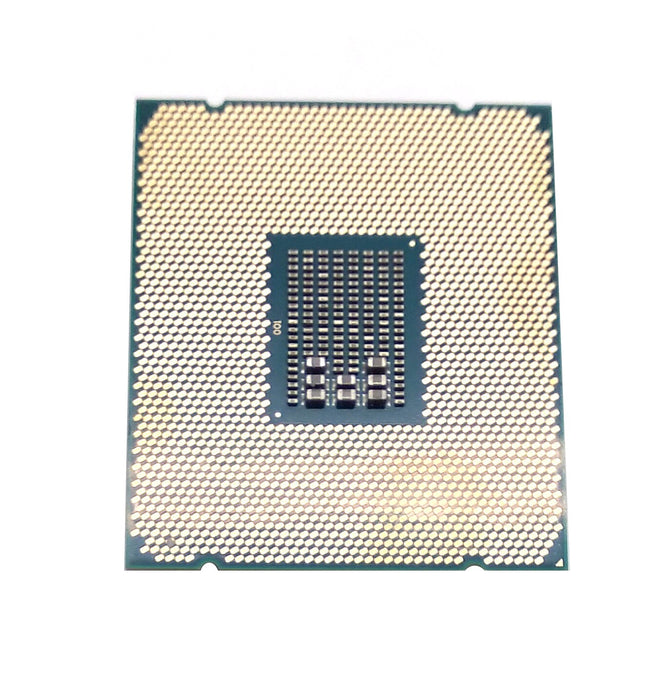

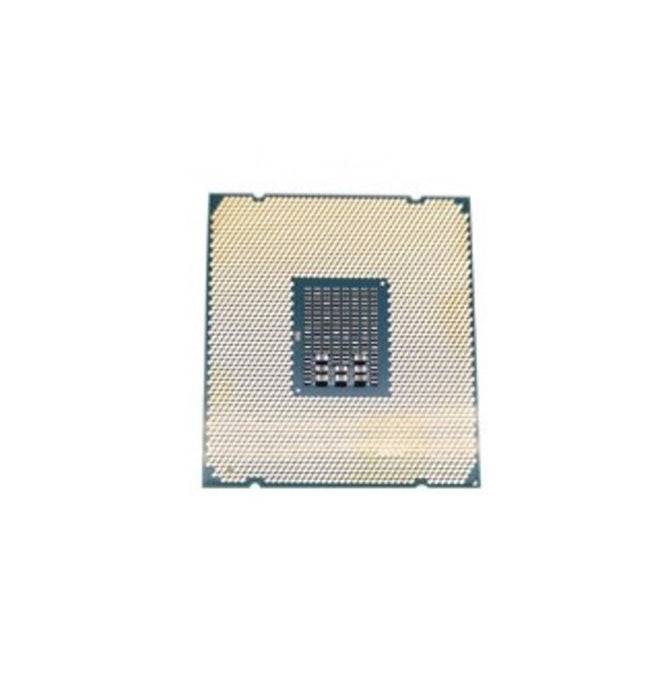

Intel Xeon CM8066002030908 E5-2690 Processor - 35M Cache - 2.60 GHz - Open Box

The powerful new Intel Xeon processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers, providing efficient and high-performance solutions for both cloud-native and traditional applications. Built on 14 nm process technology, the Intel Xeon processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance. With Intel Transactional Synchronization Extensions (Intel TSX), these processors also provide improved parallel workload performance. Efficiently manage shared resources and increase resource utilization with Intel Resource Director Technology (Intel RDT). This technology offers cache monitoring and allocation, code and data prioritization, and memory bandwidth monitoring for improved orchestration. With accelerated cryptographic performance, the Intel Xeon processor E5-2600 v4 product family enables fast and secure data transfer over encrypted connections. Additionally, improved security keys help safeguard network access and provide enhanced platform protection for added peace of

Model Number	CM8066002030908
Product Name	Intel Xeon CM8066002030908 E5-2690 Processor
Product Type	Processor
Total Cores	14
Total Threads	28
Max Turbo Frequency	3.50 GHz
Intel Turbo Boost Technology 2.0 Frequency	3.50 GHz
Processor Base Frequency	2.60 GHz
Cache	35 MB Intel Smart Cache
Bus Speed	9.6 GT/s
TDP	135 W
Max Memory Size	1.5 TB
Memory Types	DDR4 1600/1866/2133/2400
Max # of Memory Channels	4
Max Memory Bandwidth	76.8 GB/s
Physical Address Extensions	46-bit
ECC Memory Supported	Yes
Scalability	2S
PCI Express Revision	3
PCI Express Configurations	x4, x8, x16
Max # of PCI Express Lanes	40
Sockets Supported	FCLGA2011
Max CPU Configuration	2
TCASE	89degC
Package Size	45mm x 52.5mm
Intel Turbo Boost Technology	2
Intel Hyper-Threading Technology	Yes
Intel Transactional Synchronization Extensions	Yes
Intel 64	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel AVX2
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Demand Based Switching	Yes
Thermal Monitoring Technologies	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology	No
Intel vPro Eligibility	Intel vPro Platform
Intel AES New Instructions	Yes
Intel Secure Key	Yes
Intel OS Guard	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes

Open Box: Like new in original manufacturer condition.

All products have a 90 day SaveCentral warranty and are part of our 30 Day Return Policy.

Please contact us with any questions.
