Servers, workstations, and storage solutions based on the new Intel Xeon processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you'll be delighted by better than ever performance no matter what tasks you face. Your investment in industry standard technology from Intel combined with innovative solutions from partners help future-proof your data center with infrastructure that grows with your business. Today's private clouds enable greater business agility and efficiency by delivering innovative and scalable services that drive value back into the organizations they serve. Building and managing these services require systems that scale to meet your ever changing needs, while delivering solutions to the challenges IT managers face every day. Server and storage platforms based on the Intel Xeon processor E5 family are built to be at the heart of today's data centers and enable powerful, versatile private cloud solutions. The Intel(r) Xeon(r) processor E5 family support key cloud requirements that make your data center agile and more responsive to changing business needs. Maintaining industry leadership for power efficiency and continuing Intel Xeon processor performance advancements, the Intel Xeon processor E5 family gives you additional performance when you need it for single- and multi-threaded applications, including increased floating-point performance for technical computing workloads.
Model Number | CM8064401723701 |

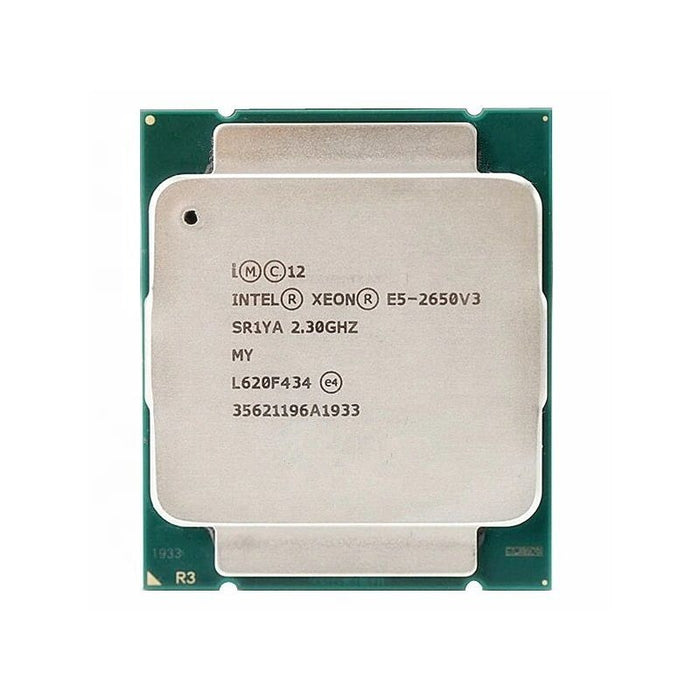

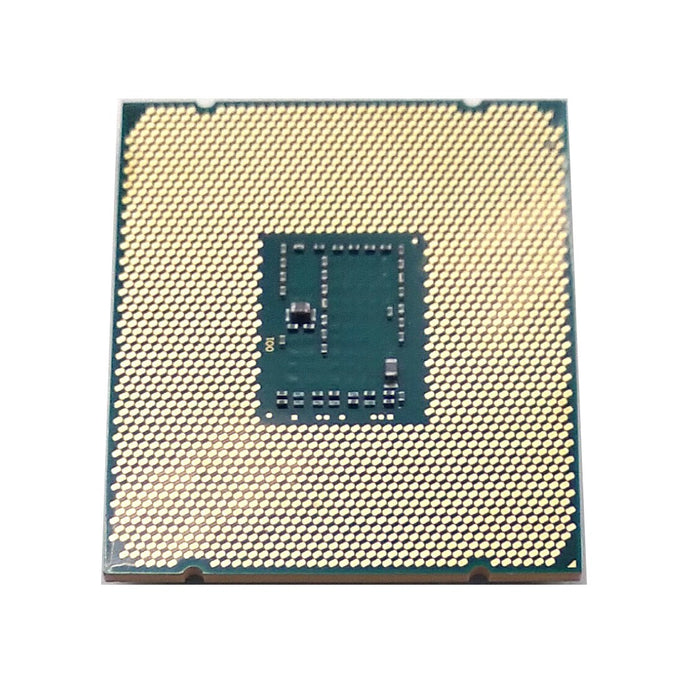

Product Name | Intel Xeon Processor E5-2650 v3 CM8064401723701 Server Processor |
Product Type | Server Processor |
Vertical Segment | Server |
Processor | Intel Xeon Processor E5-2650 v3 |
Processor Code Name | Haswell |
Lithography | 22 Nanometers |
Total Cores | 10 |
Total Threads | 20 |
Max. Turbo Frequency | 3.00 GHz |
Processor Base Frequency | 2.30 GHz |
Cache | 25 MB Intel Smart Cache |
Bus Speed | 9.6 GTps |
No. of QPI Links | 2 |
TDP | 105 Watts |
Max. Memory Size | 768 GB |
Memory Type | DDR4 |
Max. No. of Memory Channels | 4 |
Max. Memory Bandwidth | 68 Gbps |
Physical Address Extension | 46-bit |
ECC Memory Supported | Yes |
Scalability | 2S |
PCI Express Revision | 3.0 |
PCI Express Configuration | x4, x8, x16 |
Max. No. of PCI Express Lanes | 40 |
Socket Supported | FCLGA2011 |
Max. CPU Configuration | 2 |
Intel Turbo Boost Technology | 2.0 |
Intel Hyper Threading Technology | Yes |
Intel 64 | Yes |
Instruction Set | 64-bit |
Instruction Set Extension | Intel AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Intel Demand Based Switching | Yes |
Thermal Monitoring Technologies | Yes |
Intel vPro | Yes |
Intel Secure Key | Yes |
Intel AES New Instructions | Yes |
Intel Secure Key | Yes |
Intel OS Guard | Yes |
Intel Trusted Execution Technology | Yes |
Execute Disable Bit | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Compatible Server System | Intel Server System R1304WTTGSR, R1208WTTGSR, R1208WT2GSR, R1304WT2GSR, R1208WT2GS, R1208WTTGS, R1304WT2GS, R1304WTTGS, R2224WTTYSR, R2312WTTYSR, R2308WTTYSR, R2208WT2YSR, R2208WTTYC1R, R2208WTTYSR, R2208WT2YS, R2208WTTYC1, R2208WTTYS, R2224WTTYS, R2308WTTYS, R2312WTTYS |
Compatible Compute Module | Intel Compute Module HNS2600TPNR, HNS2600TP24STR, HNS2600TP24SR, HNS2600TP24R, HNS2600TPFR, HNS2600TPR, HNS2600TPF, HNS2600TP, HNS2600KPR, HNS2600KPFR, HNS2600KP, HNS2600KPF |
Compatible Server Board | Intel Server Board S2600CWTSR, S2600CWTR, S2600CW2SR, S2600CW2R, S2600CW2S, S2600CWTS, S2600CWT, S2600CW2, S2600KPTR, S2600KPR, S2600KPFR, S2600KP, S2600KPF, S2600TPNR, S2600TPFR, S2600TPR, S2600TPF, S2600TP, S2600WTTS1R, S2600WTTR, S2600WT2R, S2600WT2, S2600WTT |
