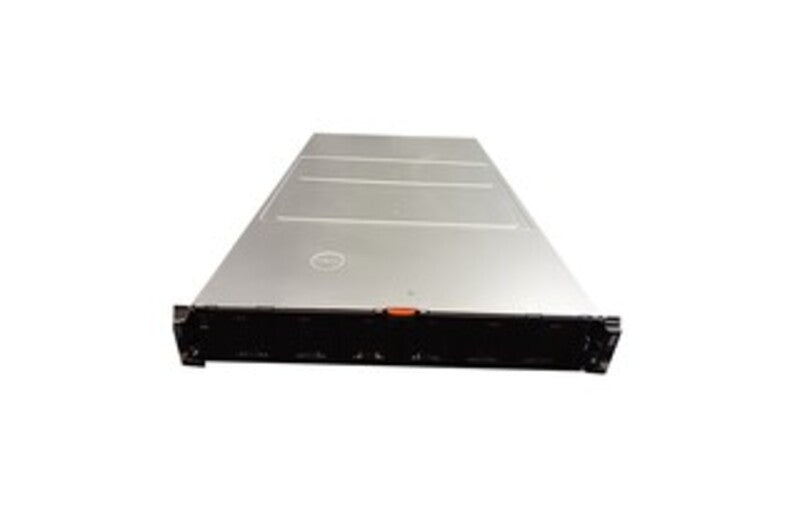

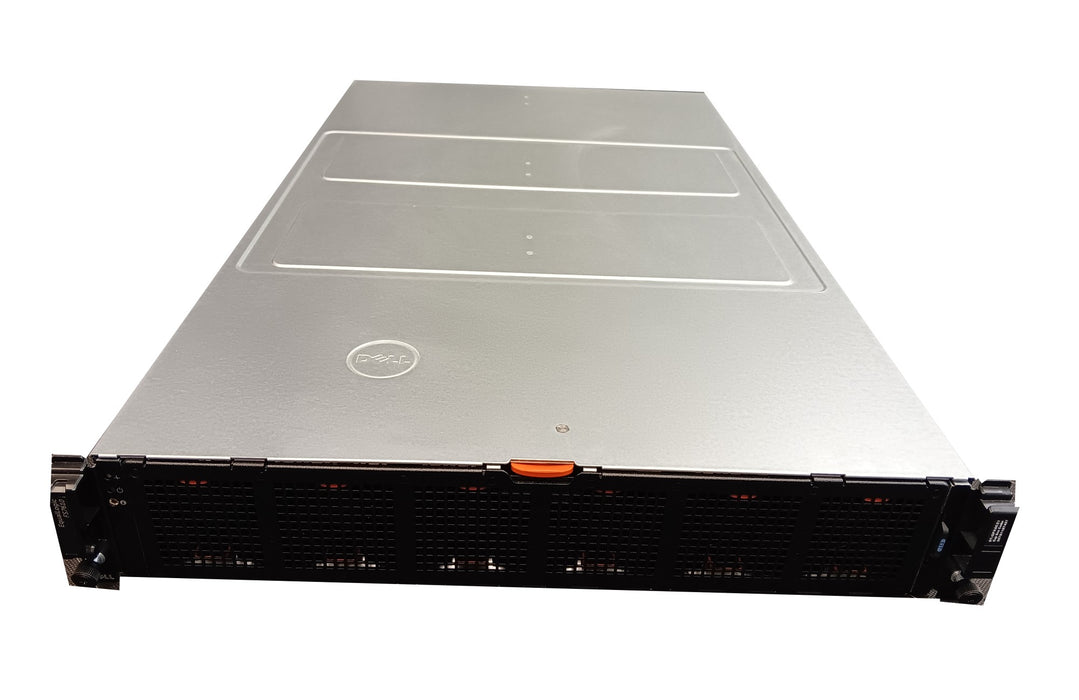

Improve productivity and streamline your IT infrastructure by storing block and file data on a single scale-out storage platform. The unique architecture behind the Dell EqualLogic FS7610 NAS appliance helps you expand storage capacity and system performance non-disruptively as your needs evolve over time.
| Model Number |
FS7610 |
| Product Name |
Dell EqualLogic 7610 NAS Appliance |
| Product Type |
NAS Storage Appliance |
| Compatible Part Numbers |
09V273, 1K91H |
| Configuration |
Chassis only, with fans and power supplies. Controllers not included. |
| Operating System |
None |
| Cluster scalability |
Up to two FS7600/FS7610 appliances (four controllers) in a single NAS cluster |
| File system capacity |
Up to 509TB |
| 1GbE configuration options |
Supports up to two Intel 1GbE four-port NICs per controller (not included) |
| 10GbE configuration options |
Supports up to two Intel 10GbE dual-port NICs per controller (not included), copper or optical, SFP+ or 10GBASE-T standards |
| Storage arrays supported |
Any EqualLogic group running version 8.1 or later firmware |
| Management |
EqualLogic Group Manager |
| NFS file protocol support |
NFSv4.x and NFSv4 ACLs (for implementation detail, refer to the FluidFS support matrix) |
| SMB file protocol support |
SMB 3.0 (for implementation detail, refer to the FluidFS support matrix) |
| NAS volumes |
Max NAS volumes per NAS cluster: 1,024; max NAS volume size: as large as the file system/namespace |
| Shares/exports |
Max number of SMB shares per cluster: 1,024; max number of NFS mounts/exports per cluster: 1,024 |
| Multi-client subnet support |
Configure multiple client networks and VLANs to present NFS exports or CIFS shares |
| Concurrent active SMB connections |
Max for single appliance: 5,000; max for a two-appliance cluster: 10,000 (active defined as clients engaging in I/O in the last 15 minutes) |
| User authentication |
For SMB clients: Kerberos v5 and NTLM v2 on Microsoft Active Directory Server; for NFS v4 clients: Kerberos 5 on AD and SASL support for encryption |
| Directory services |
Windows SMB and NFS clients: Microsoft Active Directory 2003, 2003R2, 2008, 2008R2, 2012, 2012R2; Linux/UNIX clients: NIS and secured LDAP |
| Quotas |
User and group quota rules per container: 1,000; max user quotas per cluster: 1,000 |
| Local users |
Max local users per cluster: 100; max local groups per cluster: 100 |
| Directories |
Max number of directories per cluster: 10 billion; max directory name length: 255 bytes |
| Files |
Max file size: 16TB; max number of files per cluster: 10 billion; max file name length: 255 bytes |
| Snapshots |
Redirect-on-write snapshots; max number of snapshots per container/cluster: 1,024/10,000; max number of snapshot policies per container/cluster: 512/1,024 |
| Replication |
Asynchronous to peer FS7610/FS7600/FS7500 appliances, dissimilar clusters cluster sizes only (client network speeds and array configurations can vary); max number of replication partners (or destinations): 100; max number of replication policies per cluster: 512; max number of concurrent replications: 10 outgoing, 100 incoming; max containers enabled for replication: 256 |
| NDMP backup |
Remote or three-way NDMP over Ethernet ports Certified with Dell Quest NetVault Backup 9.10, CommVault Simpana 9.10, IBM Tivoli Storage Manager 6.3, Symantec NetBackup 7.0 and 7.5, Symantec Backup Exec 2012, 2014, EMC Networker 8.x |
| ICAP antivirus |
Certified with Symantec ScanEngine 5.2 and Protection 7.0, 7.5, McAfee Virus Scan Enterprise 8.8 and Enterprise for Storage 1.1.0, Sophos Endpoint Security and Control 10.2, 10.3, TrendMicro InterScan Web Security Suite 3.1 |
| Data reduction |
Post-process policy-based variable block (128KB +/- 64KB) data deduplication and LZPS compression per NAS volume Memory |
| Memory per controller (not included) |
24GB DDR3 1066MT/s per controller (48GB per appliance) |
| Power supply |
2x 717W installed |
| Fans |
6x installed |
| Input voltage |
90-264 VAC; auto-ranging; this system is also designed to be connected to IT power systems with a phase to phase voltage not exceeding 230V |
| Output wattage |
717W |
| Heat dissipation |
2446 BTU/hr |
| Line frequency |
47-63 Hz |
| Current |
10.5Amp at 90 VAC steady state, 5.2Amp at 180 VAC steady state |
| Dimensions |
Form factor: 2U; width: 44.63 cm (17.6 in) (does not include rack flange); depth: 81.30 cm (32.0 in) (includes bezel and controllers installed); height: 8.64 cm (3.4 in); weight max configuration: 30.5 kg (67 lb) |
